High speed automatic smd pick and place with CF feeder

FOB Reference Price:Get Latest Price
US $7,000-12,000 / Sets | 1 Set/Sets smd pick and place (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
TERMWAY
Model Number:
TP210+
Product name:
High speed automatic smd pick and place with CF feeder
max moving range:
380*350mm
Max speed:
3700cph
Actual Speed:
2400-3500CPH
max pick&place accuracy:
±0.015mm
repeat accuracy:
±0.15mm
Position:
Machinery Position
Component Available:
Resistor , capacitor above 0603 and SOIC below 15mm
Feeder Num:
Can set 50 pcs of 8mm GFTA-08S
Weight:
95kg
SupplyAbility
SupplyAbility:
300 Set/Sets per Month smd pick and place
Packaging & Delivery
Packaging Details
smd pick and place
plywooden or packing according to your requirement
Port
Beijing/Tianjin
Lead Time :
10 working days after receiving full money

  High speed automatic smd pick and place with CF feeder

tp210+ 6

Introduction

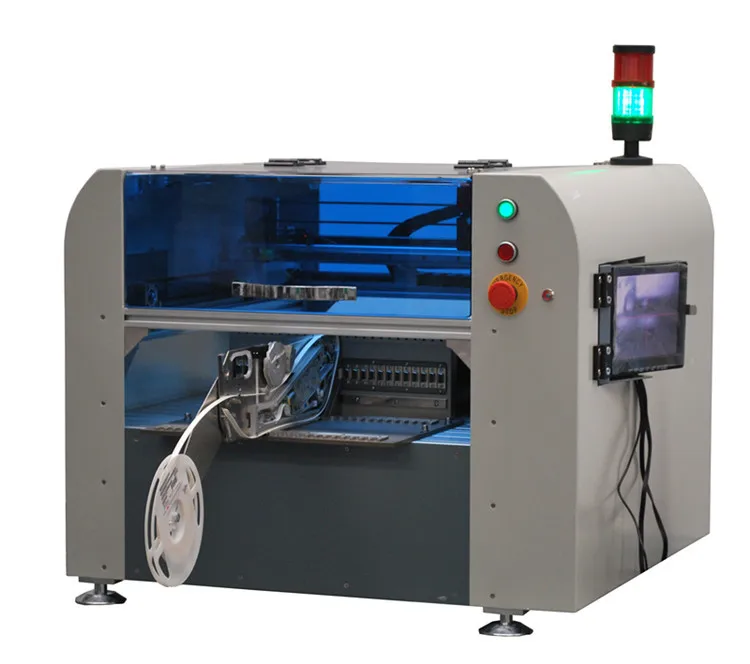

Automatic pick and place machine TP210+ is a mini-type desk high speed pick n place machine. It is a cost andeffective machine.
TP210+ can mount 0603, 0805,1206 etc and SOP, SOIC (size under 15*15mm, PIN foot less than 24)
TP210+ equips 50 pcs of 8 feeders ( electric feeder 8mm, 12mm,16mm,24mm can choose), Z axis can routefreely. It can meet mounting require of various of angle component.



TP210+/TP220 Summary

1. Component available for below 20mm SOP columnar diode, triode, SOT, SOP, IC chips and and0603 component ( except of 5mAluminum electrolysis electric capacitor )ect

2. Intelligent electrical feeder

3. Program and mounting technology for multi–panels

4. Off-line program function

5. Program control

6. Visional program

7. Powerful data import function, anyformats of PCB file can be imported. a new program can be finished in 10minutes

8. Stably pick and place SMD 0402

9. Security cover for protection ofoperator to dustproof

10. High precision linear guiderail

11. Configurate 5 kinds of nozzle, softwarereminds of "nozzle changing"

 smd pick and place

2310-1

Main parts:

Stepmotor with an angle change function
TP210+ can mount 45°, 90°,180° angle component.

DualParallel square-type wide guiderail
Compared with balling guiderail, the guiderail has a small space to ensureprecision accuracy.

Visional+machinery position system
Camera nearby mounting head can magnifying ' + ' cursor to make Mark pointposition more accurate

No-contactflying centering system
Flying centering system can mount most of SMD components include: 0603,0805,1206 etc and SOP, SOIC (size under 15*15mm, PIN foot less than 24)

Flexiblereference point system(RPS):
In addition to standard Round reference point, square PCB pad and ring PCB padwith hole also can be identified as a reference point.

All-purposeautomatic feeder
50 pcs at most of automatic feeder, 8mm,12mm,16mm, 24mm, you can choose to install according to yourcomponent type and your required speed. it uses unique Air suspended pick and placehead design which can transmission several kinds of large and small component.

Protelfile of component data import
Software control, limitless data file can save in PC, you can call them at anytime when you need, easy to operate.







 TP210+-220
