250 kg Semi-automatic screen printing machine

FOB Reference Price:Get Latest Price
US $3,600-5,000 / Sets | 1 Set/Sets sakurai screen printing machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Plate Type:
Screen Printer
Condition:
New
Place of Origin:
Beijing, China (Mainland)
Brand Name:
TORCH
Model Number:
T1200D
Usage:
PCB Solder paste printing
Automatic Grade:
Semi-Automatic
Color & Page:
Multicolor
Voltage:
AC110V/220V
Gross Power:
2.3kw
Dimensions(L*W*H):
8800x1620x1600mm
Weight:
120kg
Certification:
CE Certification
Warranty:
One Year
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
250kg Semi-automatic sakurai screen printing machine
Controlling way:
Touching screen and PLC
Stencil size:
370*470mm;420*520mm;550*650mm
Max printing area:
250*330mm
Printing Type:
Screen Printing
Product Material:
print circuit board
SupplyAbility
SupplyAbility:
60 Set/Sets per Month sakurai screen printing machine
Packaging & Delivery
Packaging Details
Plywood or other packing according the need
Port
Tianjin
Lead Time :
3-7 working days after the payment

250kg Semi-automatic sakurai screen printing machine

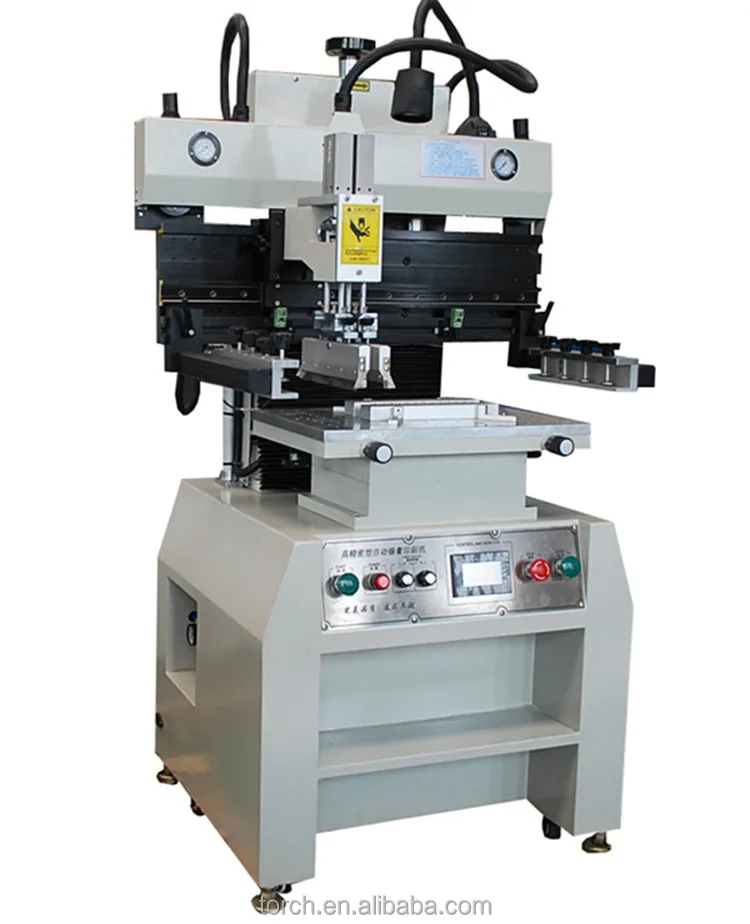

T1200D 1



Introduction:

T1200D is the first printing machine with digital Display-Module for the pressure inland. With the help of the creative design “adjusting system of the scraper pressure with digital display” , the pressure of the scraper can be easily adjusted to make the control of printing visible.

T12000D is the most reasonable semiautomatic SMT printing machine with high accuracy. It is specially suitable for high-accuracy batch production or making templet. The PCB Plate is fixed on a work platform which is flexible. The work platform is the same with single and double sides’ circuit board. The adjustments of the PCB plate and the movement of the work platform are driven by the linear square guide-tracks, cooperated together with a double-frequency motor. Therefore exact motion and high accuracy of repetitions can be ensured. It is now the optimal choice to take the place of full automatic printing machine and decrease the cost of the production maximally.

Technical instruction :

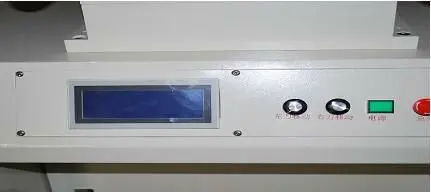

1.T1200D provides an English and Chinese touch key-press (imported) which is simple to be operated. Automatic display for the failure, guide for eliminating the failure, convenient man-machine conversation.
2.Automatic number representation function, convenient for counting parameters.
3.A breakthrough of printing: because the red pastern and tin paste have different specialties. The machine has a special function “automatically parameters setting”. It meets different kinds of products and achieves a perfect printing effect.
4.T1200 has a retractable arm base. The Arm of the machine can be right and left adjusted. Suitable for printing the PCB plate from 470mm to 650mm.
5.The printing scraper can be fixed upwards, rotating 45 degrees so that it is convenient for cleaning and replacing the scraper.
6.Single or double sides’ work platform. Model plate, comb fundus and thimble under the PCB (fix the thimble of the comb fundus according to the size of the substrate).
7.The Adjustment of the silk screen adopts the movement of the silk screen, together with the adjustment of the X, Y, Z,θ axes of the PCB.



Controlling way

Touching screen and PLC

Max printing area

250*330mm

Stencil size

370*470mm;420*520mm;550*650mm

PCB thickness

0.2-2mm

pressure

4-6kgf/cm2 (air supply is optional)

Power supply

AC220V 50HZ

Max power

100W

Accuracy

X±10mm; Y±10mm;

Repeating accuracy

±0.02mm

Ideal printing accuracy

0.35mm

Dimension

900*900*1650mm

Weight

250kg
