High accuracy digital display curved screen printer

FOB Reference Price:Get Latest Price
US $5,000-7,000 / Pieces | 1 Piece/Pieces curve screen printer (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Plate Type:
Screen Printer
Condition:
New
Place of Origin:
Beijing, China (Mainland)
Brand Name:
TORCH
Model Number:
T1200D
Usage:
stencil printing machine
Automatic Grade:
Semi-Automatic
Color & Page:
pcb board
Voltage:
220V
Gross Power:
AC220V 100W
Dimensions(L*W*H):
900*900*1650
Weight:
250
Certification:
CE
Warranty:
1
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
High accuracy digital display curved screen printer
Stencil:
370*470mm 420*520mm 550*650mm
Max print size:
300* 400mm (Standard), 500*600mm (optional)
PCB width:
0.2 ~2.0mm
Printing adjustment:
X ±10mm Y ±10mm
Repeating:
±0.02mm
Min pitch:
0.35mm
Power supply:
AC220V 100W
Air pressure:
4-6kgf/cm2
Dimension(l*w*h):
900*900*1650mm
SupplyAbility
SupplyAbility:
10000 Piece/Pieces per Year curve screen printer
Packaging & Delivery
Packaging Details
curve screen printer
wooden box
Port
tianjin
Lead Time :
15
High accuracy digital display curved screen printer
Product Description






5

Product Description:

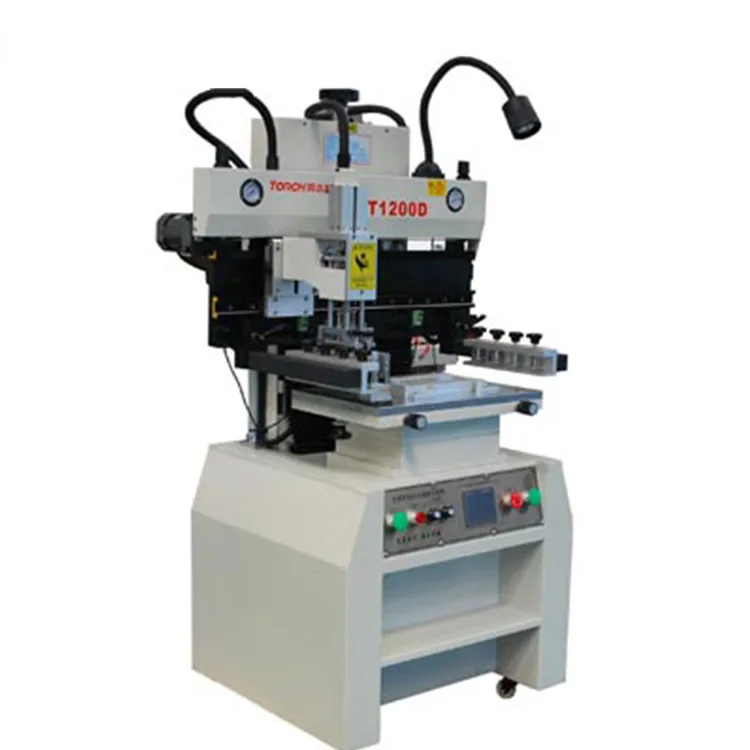

T1200D is the first printing machine with digital Display-Module for the pressure inland. With the help of the creative design "adjusting system of the scraper pressure with digital display" , the pressure of the scraper can be easily adjusted to make the control of printing visible.
Technique parameter:

Introduction

T1200D is the first printing machine with digital Display-Module for the pressure inland. With the help of the creative design "adjusting system of the scraper pressure with digital display" , the pressure of the scraper can be easily adjusted to make the control of printing visible.
T12000D is the most reasonable semiautomatic SMT printing machine with high accuracy. It is specially suitable for high-accuracy batch production or making templet. The PCB Plate is fixed on a work platform which is flexible. The work platform is the same with single and double sides' circuit board. The adjustments of the PCB plate and the movement of the work platform are driven by the linear square guide-tracks, cooperated together with a double-frequency motor. Therefore exact motion and high accuracy of repetitions can be ensured. It is now the optimal choice to take the place of full automatic printing machine and decrease the cost of the production maximally.
( With PLC and touching screen from MITSUBISHI. ABBA screw rail.)
1.T1200D provides an English and Chinese touch key-press (imported) which is simple to be operated. Automatic display for the failure, guide for eliminating the failure, convenient man-machine conversation.
Automatic number representation function, convenient for counting parameters. A breakthrough of printing: because the red pastern and tin paste have different specialties. The machine has a special function "automatically parameters setting". It meets different kinds of products and achieves a perfect printing effect.
T1200 has a retractable arm base. The Arm of the machine can be right and left adjusted. Suitable for printing the PCB plate from 470mm to 650mm.
The printing scraper can be fixed upwards, rotating 45 degrees so that it is convenient for cleaning and replacing the scraper.
 Single or double sides' work platform. Model plate, comb fundus and thimble under the PCB (fix the thimble of the comb fundus according to the size of the substrate).
The Adjustment of the silk screen adopts the movement of the silk screen, together with the adjustment of the X, Y, Z,θ axes of the PCB.

Specification

curve screen printer,curve screen manual printer,china sublimation heatpress,china suppliers T1200D

Stencil 370×470mm 420×520mm 550×650mm
Max print size 300 × 400mm (Standard), 500*600mm (optional)
PCB width 0.2 ~2.0mm
Printing adjustment X ±10mm Y ±10mm
Accuracy ±0.05mm
Repeating ±0.02mm
Min pitch 0.35mm
Power supply AC220V 100W
Air pressure 4-6kgf/cm2
Dimension(l×w×h)900×900×1650mm
Weight about 250kgs
