T4 -4 heads automatic Pick and Place machine

FOB Reference Price:Get Latest Price
US $28,000-35,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
TERMWAY
Model Number:
T4
Mounting head::
4pcs
Max working size::
580*230mm
Typical pick and place speed::
6000~8000cph
a max speed::
8000cph
Repeat accuracy::
± 0.015mm
Position::
visional position
Component::
SMD0201 and above, size 38mm and below IC chips
IC tray feeder::
2 pcs .
Feeder No.:

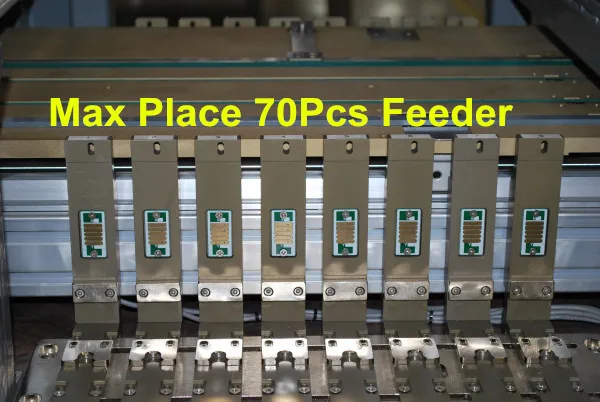

70 pcs of 8MM GFTA-08S feeder,
Feeder No.(2):
35pcs 8mm GFTA-08S feeder
SupplyAbility
SupplyAbility:
100 Set/Sets per Year
Packaging & Delivery
Packaging Details
plywood box
Port
BEIJING/TIANJIN
Lead Time :
Shipped in 15 days after payment

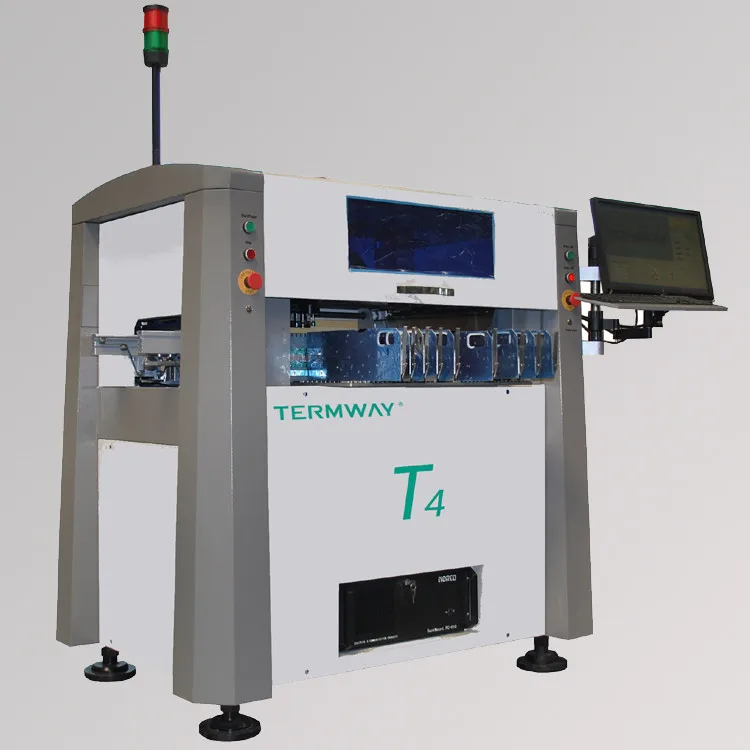

Four heads Full Automatic pick and place machine T4



t4-a

T4 unique feature :

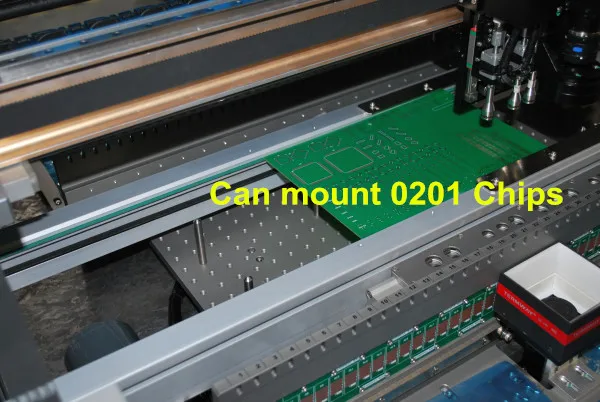

1,      The only one high precision pick and place machine that standardconfiguration can mount 0201 components



2,      The max size of QFP:48*48mm



3,      It can mount above 0.4mm pitch QFP, also can mount BGA.



4,      Configure the world famous grating ruler,achieving high precision motion control.



5,      The Used SMT's killer,seckill all kinds of used SMT within RMB200000.



characteristics:

1,The whole machine adopts casting structure,the bottom of the platform and X Y axis gantry structure adopt casting technique,effectively improve SMT production reliability and stability of long-term use

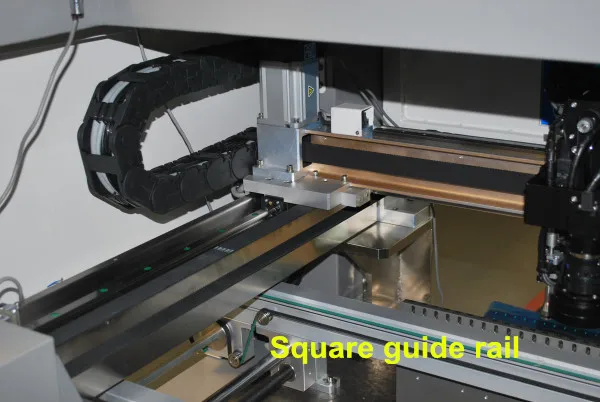

2,Using imported precision square rail, effectively improve the placement accuracy.

3,Using a unique high-definition optical prism industrial cameras to complete mount high-precision components.
4

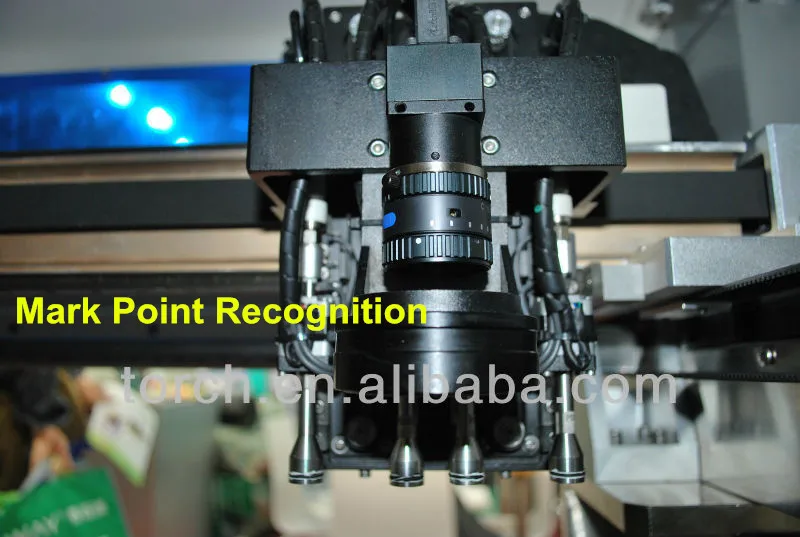

,With the vision position system, can automatically identify the MARK point, effectively improve SMT production efficiency and placement accuracy.
5
,automatic visional programming, it is no need to input the coordinates of components by manual, programming is simple, easy to learn for beginners and it is convenient and practical.It can universally import the PCB data, it is most suitable for mass production in middle scale.

6,Standard configure a set of minitype IC tray.



7,The placement configure 8 nozzles.

8,Cost-effective automatic placement machine, it is most suitable for mass production in middle scale and scientific research ,militaryindustrialenterprises high quality usage.

9,The placement configure a set of PCB board transport system, it can seamless connection with stencil printer ,handplace desk and reflow oven.

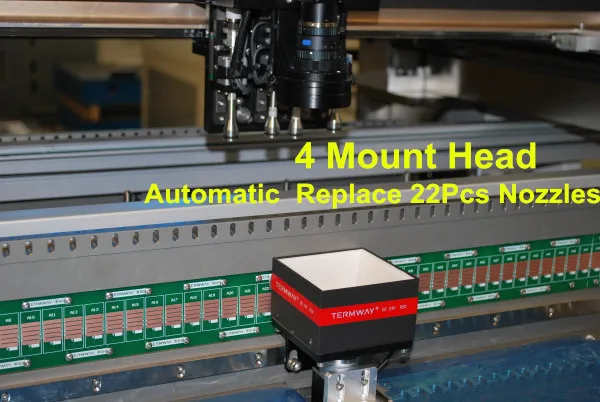

10,Standard configuration of automatic nozzle replacement system, it can freely change 22 different nozzles.

Technology Parameter

 Model No

T4

Mounter head

4 heads

Max PCB board

580*230mm

Max move range

640*460mm

Z axis move range

20mm

Typical speed

6000-8000cph

Max speed

8000cph

X,Y axis

precision

+/- 0.001mm

Repeat mount precision

±0.015mm

Position manner

Visional position

Component available

Above 0201 and less than 38 mm IC (48mm camera and lens are selected)

Programme method

Automatic data import / video learning / keyboard input

Transmission

XY-axis high precision ball screw with precision guide+ Industrial dual-belt drive+ grating ruler position

Tape feeder

Optional 8mm,12mm,16mm,24mm feeder

Feeder No.

Can be put 70 pcs of 8MM GFTA-08S feeder,the front and back can be put 35pcs 8mm GFTA-08S feeder (no IC tray)

Can be put 80 pcs of 8MM CF feeder

IC feeder NO.

No more than 2 pcs

Operation system

WINDOWS XP

Compressed air

80psi(0.5Mpa),flue 80L/min

Power

220V,50Hz,5Kw

Weight

700Kg

Dimension

1300*890*1450mm



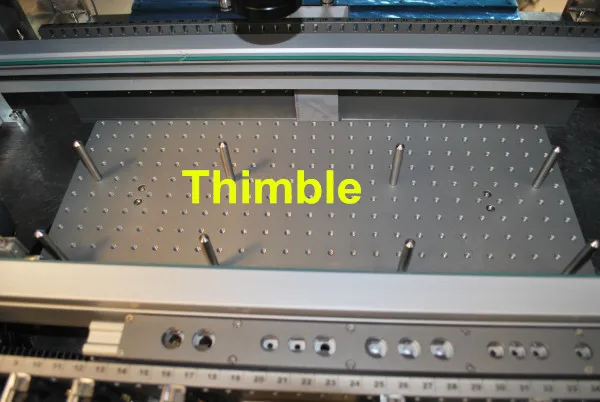

Detailed Images



Packaging & Shipping

Packing: Wooden box packing can be customized.



Delivery: 20-30 days after 30% T/T prepayment, buyer should come to inspect when we do test running, after testing, pay the 70% balance before delivery.



The  SMT machine production line  waiting for delivery:

T4 Package
