Termway high speed accuracy 1200mm chip mounter 6 heads LED pick and place machine

FOB Reference Price:Get Latest Price
$22,225.00 - $25,291.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Termway
Model Number:
LED660
position:
visional position
Type:
pick and place machine
Dimension:
2600*680*1500mm
Belt feeder:
8mm, 12mm, 16mm and 24mm
Mount head:
6 pcs
Supply Ability
Supply Ability:
1 Set/Sets per Week
Packaging & Delivery
Packaging Details
wooden package for the pick and place machine
Port
Beijing/Tianjin
Product Description

LED Automatic Chip Mounter LED660



Model:

LED660

Product Description:

LED 660 is a professional LED pick and place machine, features high speed, high accuracy. It achieves LED circuit board high-volume assembly.

LED660 summary:

1.  The first special LED pick and place machine with 6 heads .

2.  The first special LED pick and place machine used servo control system in SMT industry.

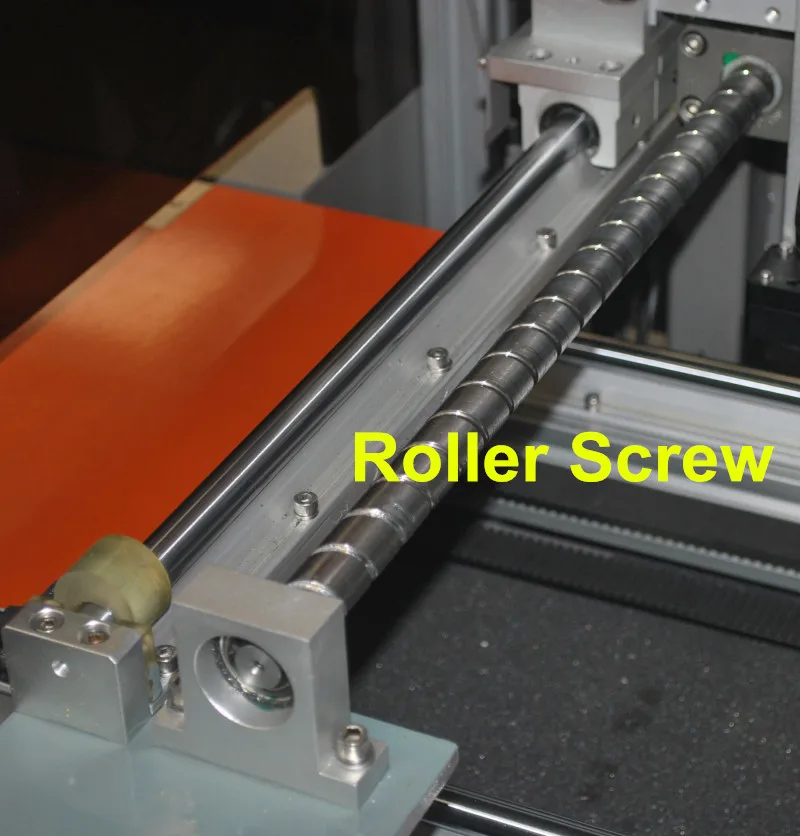

3.  The first special LED pick and place machine used high precision ball screw transmission.

4.  The unique LED pick and place machine that can precision mount less than 20mm SOP , Columnar diode, transistor ,SOT and 0402 above all component (not include thickness more than 5mm Aluminum electrolytic capacitor ).

5.  The unique LED pick and place machine that configured self-patent intelligent electronic feeder.

6.  The unique LED pick and place machine that can realize program and mount PCB puzzle.

7.  The unique LED pick and place machine that can vision program.

8.  The unique LED pick and place machine that can offline program.

9.  Powerful data input function can meet the need of input any format of PCB.

10.  The unique LED pick and place machine that can mount 0402 stably and precision.

11.  With safety cover, can effectively protect the operator and prevent the dust .

12.  Suit for above 5 types nozzle and software can The software automatically prompt replacement nozzle type.

13.  Accuracy speed is 14000CPH.

Introduce:

LED 660 is a professional LED pick and place machine, features high speed, high accuracy. It achieves LED circuit board high-volume assembly.

Feature:

1 Board driving system uses high precision stepper motor driving industrial belt, cooperating with precision guide-rail to achieve the improvement on placement accuracy and board driving speed.

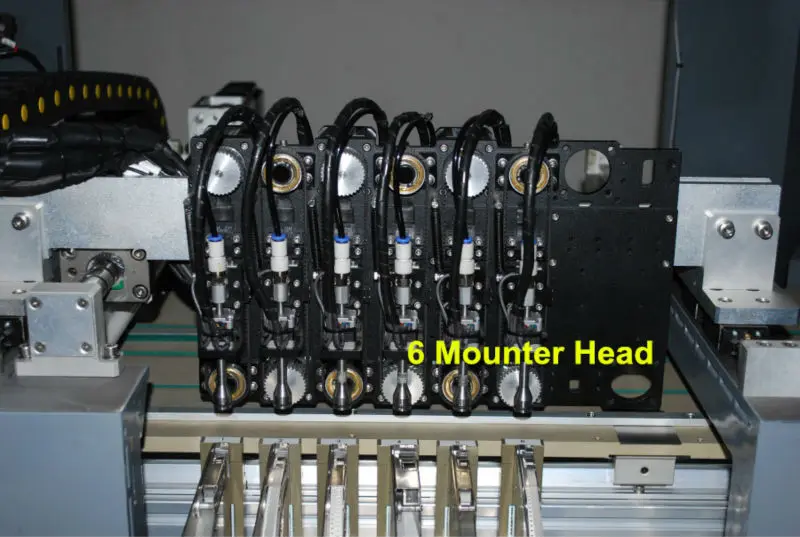

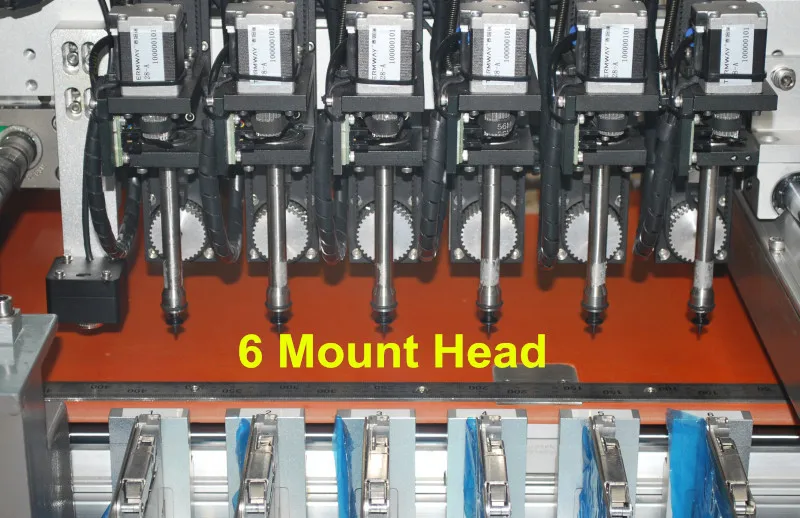

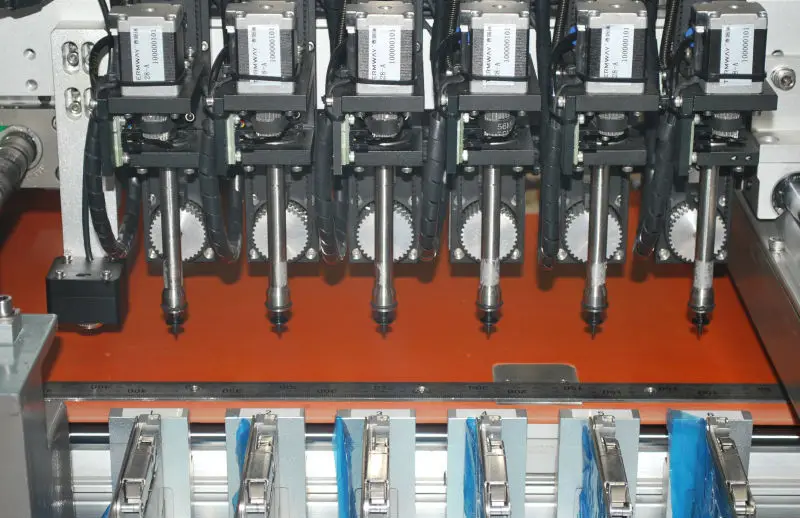

2 6 Mounting head driving system uses servo motor , together with high precision ball screw to achieve the completion of the LED component picking and placing.

3 6 groups of mount head improves production efficiency of 400% than 1 group.

4 Visual programming automatically, without input component coordinates by hand. Programming is simple, fast  ,whole program need only 10 minis ,easy for beginners to learn.



5 Different sizes of smart feeder , which will not go forward if the component is stuck or isn't picked up, can meet different requirements of LED mount.

6 Cost-effective LED chip machine is most suitable for high-volume LED production.

7 The whole machine is controlled by industrial computer with professional software, easy to operate and use.

8 Easy to import CAD data of the circuit board.

9 Stable and easy to complete the programming and placement of LED panel board

10 Panel board coordinates can be displayed in the software, fine adjustment for these coordinates to achieve high-precision placement.

11 The space of panel board can be set in software, all component placing coordinates will be showed according to the space of panel board, and the panels that need not to mount can be selected out.

12 If the board have manufacturing quality problems, LED660 can shift the component place for accurate mounting.

13 Software can realize to achieve automatically four mounting heads function.

14 Software increases the XYZ axis detection limit when moves

15 software increases 6 grades speed changing function, you can check out the best speed setting  according to the distance check sheet and to do speed adjustment, which can increase the stability for long time usage.

16 PCB platform has vacuum absorb function, which can help large-size PCB board position accurately, improve placement accuracy.  Meanwhile, it can complete soft flexible light strip of (FPC) position and mount.(Optional)

17 There is vacuum pump in the machine that no need to configure it separately and save the power, lower the noisy.

18 LED660 is special LED mounter, can mount all kinds of SMD LED chip, all 0402 above component (except more than 5mm Aluminum electrolytic capacitors ), at the same time can mount cylindrical diodes, transistors, SOP SOT and less than 20mm IC.

19 Can meet at any angle component placement. For example, can mount the LED lamp cup.

20 Powerful security systems, the software can automatically tip on maintenance.

Standard configuration:

1. Industrial Computer 1 suit

2. Mounting head 6 groups

3. Nozzle 6 pcs

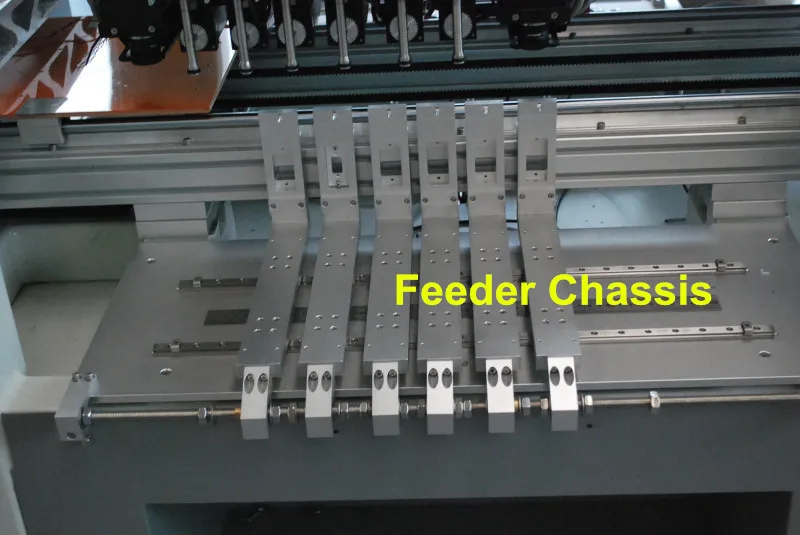

4. Feeder platform  GFTA-T06  1 set

Optional part:

1. Automatic feeder 8mm, 12mm, 16mm and 24mm

2. Nozzle

3. Industrial air pump

4. UPS

5. Feeder platform  GFTA-T06

6. Vacuum absorb platform 1 set

Technical Parameter



Model

LED660

Mount head

6 pcs

Max circuit board size

1200*350mm

Max moving range

X axis 1500mm, Y axis410mm

Max moving range of Z axis

15mm

Typical Mounting speed

13000-14000cph

Max mount speed

18000cph

Mount accuracy

+/-0.1mm

Position method

Machinery position

Component available

0603 and above SMD component and LED,SOT,SOP

Programme method

Automatic data import/ video study/ keyboard input

Belt feeder

8mm, 12mm, 16mm and 24mm

Feeder num

6 pcs of GF series feeder can be set (12 pcs feeders are optional)

Operation system

WINDOWS XP

Compressed air

internal vacuum, (large production  should use industrial air pump)

Power supply

220V,50Hz, 4.5 Kw

Weight

500Kg

Dimension

2600×680×1500mm





















































Packaging & Shipping



 Packaging:





Company Information



Beijing Torch SMT Co., Ltd. found in 2001, and has a strong ability in research and development and manufacture in SMT and PCB and Semiconductor production equipments

Torch Co., have a long unique understanding of the technology for the long-term providing professional services to domestic and foreign electronic company. It is always the leader in the SMT industrial. To suit the thought of international electronic environment protection, we develop the lead free, wave soldering, auto-printer and mounter. A lot of our products got the patent and our company passed ISO9001 and IQNET also

On the guidance of to be honesty, Torch Co., always supply the best quality, competitive price, convenient to use, energy saving products. From our company found to now, we gained a good reputation and remarkable achievement from our customs, like spaceflight, aviation, arms, information industry, college, scientific research and so on. You can see our products from the producing line of fire alarm, instruments, computer display, telephone, appliance. At present, our products are already sold in many countries such as USA, Brails, Mexico and Asian. We also cooperated with a lot of famous companies like SONY, BYD, NASDAQ, Foxconn, and NVIDA and so on and enjoyed great prestige from them. We will continue to make great efforts to satisfy the customs requirement.

The world's first company that developed 40-temperature zone temperature control technology.(4 national patents).The world's first company that developed real-time online reflow temperature measurement function desktop machine


FAQ



1: What's the way of shipping?

 Answer: The size for this machine is 1*063*0.57m, and the weight for this machine is 80kg with wooden package, we suggest you use air to ship the machine

 2: What's your way of packing the machines?

 Answer: We use air bubble film to wrap the machine, then use plywood cases to ensure its safety.

3: Do you have oversea after sale service?      Can we offer the technical support?

Answer: Yes, we can offer technical support abroad. If you have technical problem, we will send our engineers to your country.

4: Is it hard to use these machines?

Answer: No, not hard at all. After you buy our machines, you can send your engineers to our company, and we will train them how to use these machines for free. For our previous clients, at most 2 days is enough to learn to operate the machines.

5: What is the terms of payment? What about the trade terms?

Answer: T/T, You can choose FOB Beijing/Tianjin.

6: Does your machines have quality certificate? How can I trust your products?

Answer: We have more than 100 patents and we are apply for patents for our new machine .Some of our machine have CE certificate.
