High Stability desktop LED Bulb Assembly Machine

FOB Reference Price:Get Latest Price
$35,000.00 - $40,000.00 / Sets | 1 Set/Sets LED Bulb Assembly Machine (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Brand Name:
Model Number:
Product name:
High Stability desktop LED Bulb Assembly Machine
1 Year
Lead time:
Within 7 Working Days
All kinds of LED light production
Supply Ability
Supply Ability:
30 Set/Sets per Month LED Bulb Assembly Machine
Packaging & Delivery
Packaging Details
LED Bulb Assembly Machine
Wooden box, meeting the International Standards.
Lead Time :
Shipped in 7 days after payment


Product Description

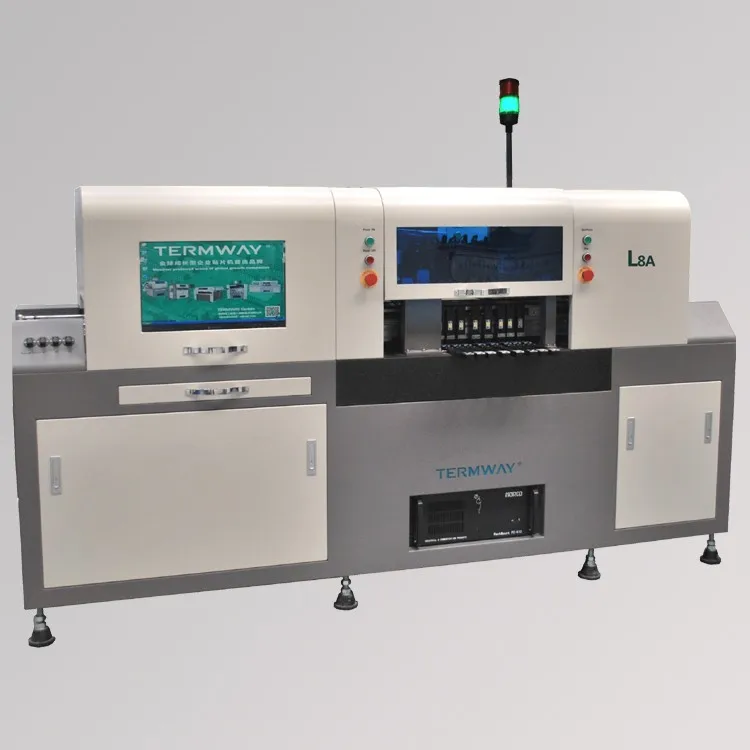

High Stability desktop LED Bulb Assembly Machine



L8A Features:

1.Board driving system uses high precision stepper motor driving industrial belt, cooperating with precision guide-rail to achieve the improvement on placement accuracy and board driving speed

2. Mounting head driving system uses servo motor, together with high precision ball screw to achieve the completion of the LED component picking and placing.

3. 8 groups of mount head improve production efficiency of 500% than 1 group.

4. Visual programming automatically, without input component coordinates by hand. Programming is simple, easy for beginners to learn.

5. Different sizes of feeder can meet different requirements of LED mounting.

6. Cost-effective LED chip machine is most suitable for high-volume LED production.

7. Lole machine is controlled by industrial computer with professional software, easy to operate and use.

8. Easy to import CAD data of the circuit board.
9. Stable and easy to complete the programming and placement of LED panel board

10.Panel board coordinates can be displayed in the software, fine adjustment for these coordinates to achieve high-precision placement.
11. The space of panel board can be set in software, all component placing coordinates will be showed according to the space of panel board, and the panels that need not to mount can be selected out.
12. Software can realize to achieve automatically 6/8 mounting heads function.
13. Software increases the XYZ axis detection limit when moves
14. Software increases multi-grades speed changing function, you can check out the best speed setting according to the distance check sheet and to do speed adjustment, which can increase the stability for long time usage.
15. PCB platform has vacuum absorb function, which can help large-size PCB board position accurately, improve placement accuracy. Meanwhile, it can complete soft flexible light strip of (FPC)position and mount.

16.The machine achieve the inline transmission of the board, effective labor-saving, efficiency, compared to similar products, you can save at least one operator. If you configure the SP400 Automatic screen printing machine, you can save at least two operators, improve the production efficiency of the entire production line and reduce the cost of long term use at the same time.

LED Bulb Assembly Machine

Standard configuration:

1.Industrial Computer 1 suit

2. Mounting head 8 groups
3. Nozzle 8 pcs

4. Feeder base GFTA-T08 1 set


Optional part:

1. Automatic feeder 8mm, 12mm, 16mm and 24mm

2. Nozzle

3. Industrial air pump/ Silent air pump

4. UPS

5. Feeder platform GFTA-T08 1 set


Technology Parameter:



Max circuit board size


Max moving range

X axis1500mm,Y axis 410mm

Max moving range of Z axis


Typical Mounting speed


Max mount speed


Mount accuracy


Position method

Visual position + Machinery position

Component available

0603 and above SMD component and LED,SOT,SOP


Automatic data import/ video study/ keyboard input

Belt feeder

8mm,12mm,16mm and 24mm

Feeder num

8 pcs of GF series feeder can be set(16 pcs feeders are optional)

Operation system


Compressed air

large production  should use industrial air pump

Power supply




























Detailed Drawings:



Feeder & Nozzle

Lead Screw                          Transmission Belt


Packaging & Shipping


Company Information





Q: Can I have my LOGO on my products?

A: Yes, We can offer LOGO silk-screen, grave. LOGO fee could be free while order quantity reach requirement.

Q: What is the bulk order delivery time?

A: Order lead time will be 2-10 working days, depend on product you order.

Q: How long is your warranty?
A: Lasts for 12 months.

Q: How could I make the payment?
A: Paypal, T/T, Western Union and Escow are the most popular methods.

Q: How about the package?
A: Foam and wooden case to protect products.

Q: How about the delivery method?
A: Normally we will take express such as DHL, Fedex, UPS and TNT for sample orders.For bulk order, will take air flights or Sea shipment.
