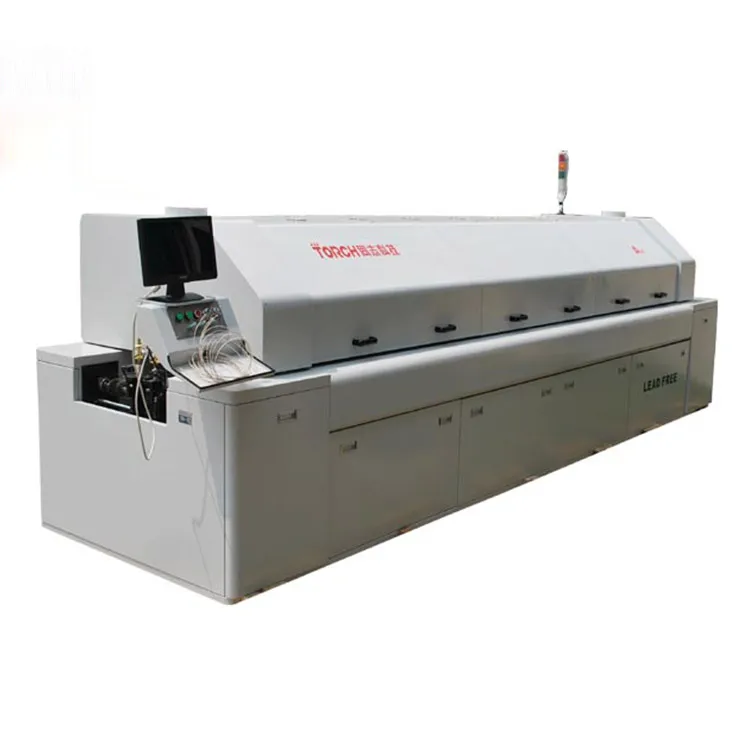

Large-size high temperature LED screen reflow oven Conveyor for sale

FOB Reference Price:Get Latest Price
US $21,700-21,750 / Sets | 1 Set/Sets Conveyor (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Reflow Solder
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Torch
Model Number:
A8
Usage:
SMT SOLDER
Voltage:
220V
Weight:
2200kg
Dimensions:
5500L*1500W*1600H
Rated Duty Cycle:
100%
Rated Capacity:
N/A
Current:
N/A
Certification:
ISO,CE
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
Large-size high temperature LED screen reflow oven Conveyor for sale
PCB size:
50-400mm
PCB transportation height:
900±20mm
Transportation speed:
0-2000mm/min
Chain's wide range:
70-500mm
Supply Ability
Supply Ability:
1000 Set/Sets per Year Conveyor
Packaging & Delivery
Packaging Details
Conveyor
wooden packaging and we can pack it for you according to your requirement.
Port
TIANJIN Shanghai / Guangzhou
Lead Time :
about 2-3 weeks after payment

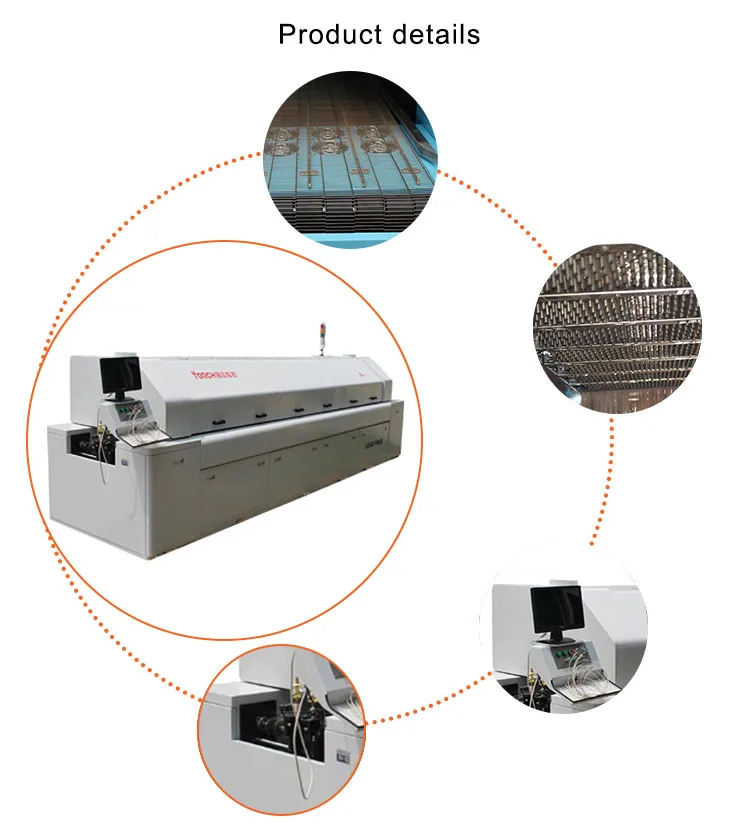

Product Description



Product Description:

The mainly component is adopted international brand one. Temperature can warm up quickly and keep stable, High effective can save Electronic It is adopted in jointing the BGA and CSP component.
Special oven inner design has a heat insulation system, The electronic cost is the lowest of this filed. (A common one will cost 15KW/Hour.Our A8 just 8.5W/Hour).That will save 40%; If the equipment works for 24 hours, that will save 50 thousand CNY per year.



Technical paramter :



Heating -zones

8 heating-zones,16 heating, 4 cooling

Heating length

2950mm

controlling area

room temperature to 360°C

Controlling accuracy

±1 C

difference in temperature

±2 C

cooling way

compulsion cooling air(can choose water cooling)

PCB size

50-400mm

PCB transportation height

900±20mm

transportation way

Chain and net tape to transport

transportation direction

L-R (can choose R-L)

transportation speed

0-2000mm/min

Chain’s wide range

70-500mm

net tape width

520mm

power off protection

Ups for Conveyor & PC

power supply

AC 380V 50Hz

normal/start power

8.5/33kw

mm dimension

5500L*1500W*1600H

net Weight

2200kg

Nitrogen protection

can choose configuration

O2 density



cost of Nitrogen





Spares parts list :



Controlling system

SIEMENS CPV,SIMA temperature controlling panel.(Also can choose the Torch researched )

Software

researched by Torch

Computer

IPC or 15 inch LED screen.

Without electricity switch /air switch

French Schneider

Solid state relay

Switzerland CARLO GAVAAZZI

Intermediate relay

Japanese Omron

Fuse

French Schneider

Single air switch

French Schneider

Transportation motor

PANASONIC

Circulation motor

Taiwan San yue

Heater

LONG SHENQ ELECTRONIC, shelf life is 100 thousand hours.

transportation motor

PANASONIC

UPS

Taiwan APCUPS

transducer

Taiwan Motor

wire

high temperature international standard wire

temperature test sense organ and connector

OMEGA USA OMEGA

photo electricity switch

YAMATAKE

Guideway adjusted motor

PANASONIC

led placement machine

Large-size high temperature LED screen reflow oven Conveyor for sale




chip mounte

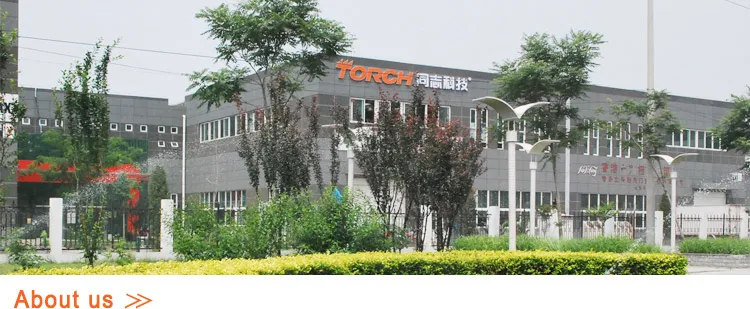

Company Information






We have provided professional services for domestic and foreign electronic companies for a long time. We are always the leader in SMT industry in China. We develop lead free reflow ovens, wave soldering machines, auto printers and mounters for environmentally friendly purpose. A lot of our products got the patent and our company has passed the evaluations of ISO9001 and IQNet certifications.
