Energy saving desktop wave soldering machine for SMT assembly line

FOB Reference Price:Get Latest Price
US $3,850-4,050 / Sets | 1 Set/Sets wave soldering machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Other
Place of Origin:
Beijing, China (Mainland)
Brand Name:
Torch
Model Number:
TB680
Voltage:
220V±1%V
Current:
16A
Rated Capacity:
3KW
Rated Duty Cycle:
50%-60%
Dimensions:
850X600X330mm
Weight:
48Kg
Usage:
SMT assembly line
Certification:
ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
Energy saving desktop wave soldering machine for SMT assembly line
Max power:
3KW
Pot capacity:
37Kg tin
Max PCB size:
200X270mm (max)
Temperature range:
200-300°C LED display
200-300°C LED display:
70-90°C
Height range of wave crest:
5-12mm
Melting time:
80min
Transmission speed:
0.5-3m/min
Gimension:
850X600X330mm
SupplyAbility
SupplyAbility:
10 Set/Sets per Month wave soldering machine
Packaging & Delivery
Packaging Details
wave soldering machine
wooden package ,about 80kg ,1000*640*600mm
Port
Tianjin/Beijing
Lead Time :
about 5 days after payment , usually have stock



Product Description



ⅠSummary

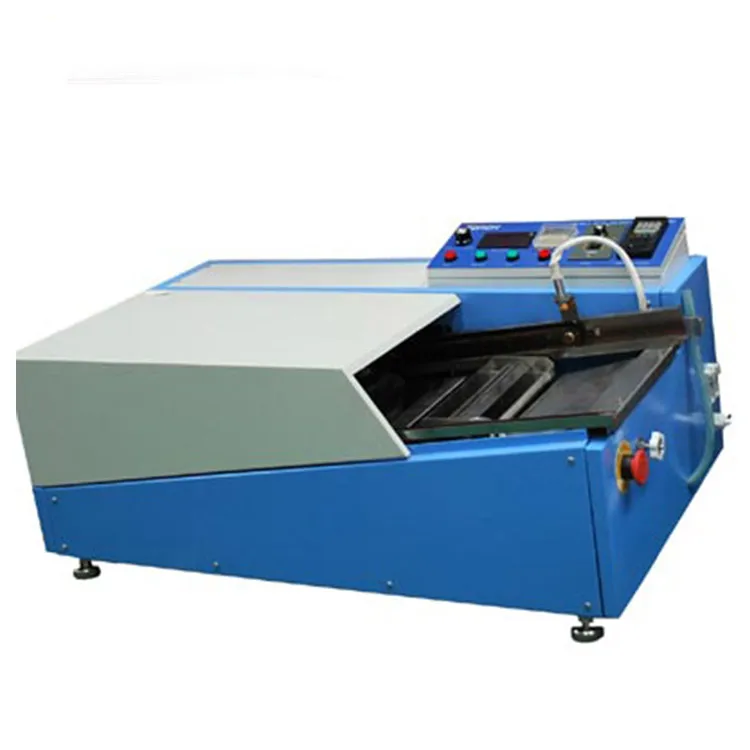

Desk wave soldering machine TB680 has been developed by Torch, It is the first equipment in small type wave soldering field. TB680 is suitable for research center, war industry, middle- and small-sized corporation, small private corporation and other electronic production companies. It is a desk-type, taking up small room, with multi-functions, energy-saving and high efficiency. The operation is easy and especially suitable for small and middle batch production.



Ⅱ Main technology parameters



Max power3KW
Pot capacity37Kg tin
Max PCB size200X270mm (max)
Temperature range200-300°C  LED display
Preheating temperature70-90°C
Height range of wave crest5-12mm
Melting time80min
Flux sprayfroth
Power supply220V±1%V  AC  single phase 50Hz
Transmission speed0.5-3m/min
Dimension850X600X330mm
Net weight48Kg



Fnction

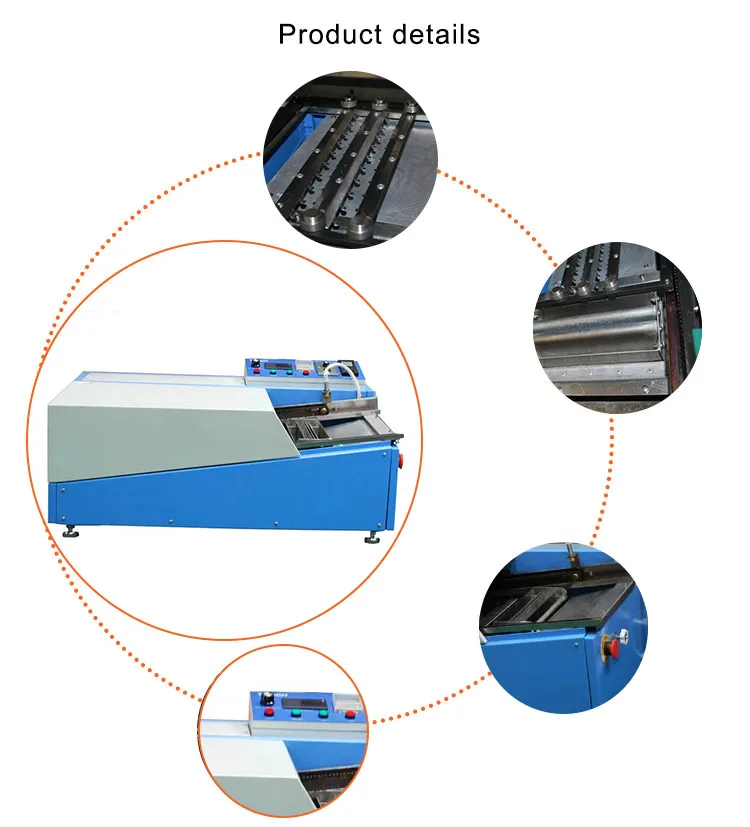

There are 6 parts: flux, preheating, soldering, electrical controlling, exhaust unit and convection unit.

Flux

Flux parts are made of air pump, air tube, pin valve, filter, froth tube and flux box.

Flux

There is flux belt on the froth tube, PCB whose side has chips is on the top and touch flux, the side will has flux film.

wave soldering machine

Energy saving desktop wave soldering machine for SMT assembly line




chip mounte
